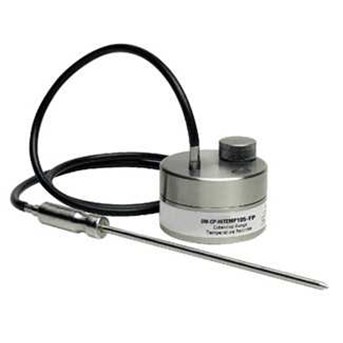

Detail OMEGA Extended Range Temperature Data Logger With Flexible Probe OM-CP-HITEMP-150FP
• Extended Temperature Range
• Flexible Probe
• Silicone Rubber Enclosed Cable
• Rugged
• Reusable
• Programmable Start Time
• Real-Time Operation
• NIST Traceable
• Easy-To-Use Software
• Low Cost
Specifications
Temperature Sensor: 100. Platinum RTD
Temperature Range: -40 to 150° C ( -40 to 302° F)
Temperature Resolution: 0.05° C
Specified Accuracy Range: Both probe and logger body between 80 to 140° C ( 176 to 284° F)
Temperature Resolution: 0.05° C
Calibrated Accuracy: ± 0.5° C
Start Time: Software programmable start time
and date, up to six months in advance
Real Time Recording: May be used with PC to monitor
and record data in real time
Memory: 32, 767 readings
Reading Interval: 1 reading every second to 1 every 12 hours
Lethality Equations: Sterilization unit and Pasteurization units
are available in the software with a click of a button
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Power: 3.9V high-temperature lithium battery ( included) , factory replaceable only
Battery Life: 1 year typical ( 1 min reading rate @ 25° C)
Data Format: Date and time stamped ° C, ° F, K, ° R
Time Accuracy: ± 1 minute/ month at 20° C
( interface cable not in use)
Computer Interface: PC serial or USB
( interface cable required) ; 2, 400 baud
Software: XP SP3/ Vista and 7 ( 32 and 64-bit)
Operating Environment: -40 to 150° C ( -40 to 302° F) , 0 to 95% RH non-condensing
Dimensions ( Body) : 28 x 45 mm dia ( 1.1 x 1.75" )
Dimensions ( Cable* ) : 60 cm x 4 mm dia ( 2' x .14" )
Dimensions ( Probe Handle) : 39 x 10 mm dia ( 1.5 x 0.375" dia)
Dimensions ( Probe) : 102 x 4 mm dia ( 4.0 x 0.125" )
Material ( Body and Probe) : 316 stainless steel
Material ( Cable* ) : Teflon
Weight: 227 g ( 9 oz)
